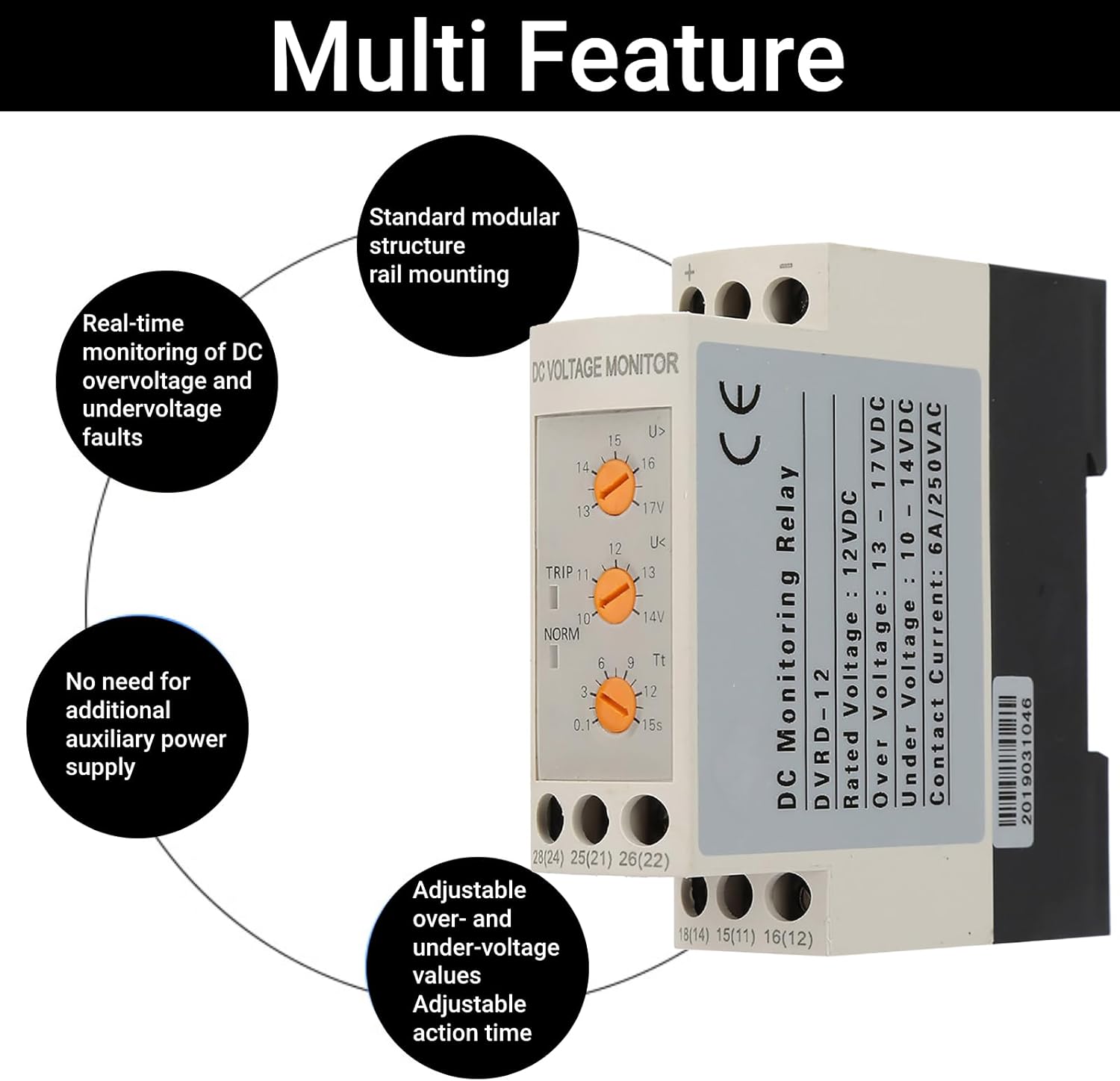

Voltage Monitoring Relay Over Under Voltage Protector 35mm DIN Rail Mount for DC Power Supply and Motor Protection
Product details
| Management number | 221103327 | Release Date | 2026/05/03 | List Price | US$12.84 | Model Number | 221103327 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

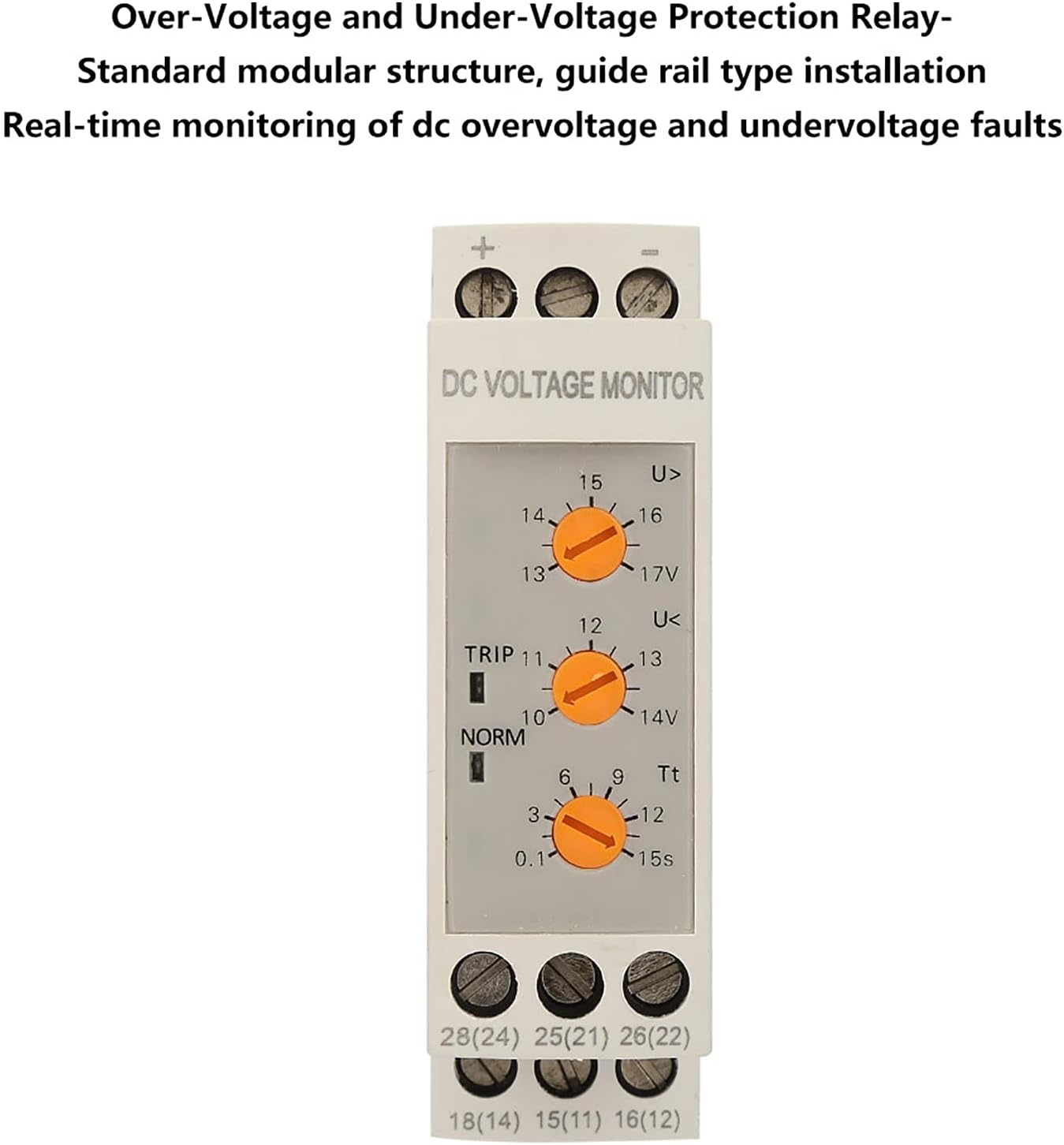

Specification: function: over voltage, under voltage Model: DVRD - 12/24/36/48(Optional) Rated voltage: DC 12V/24V/36V/48V(Optional) Monitoring circuit: direct current circuit function: over voltage, under voltage Overvoltage regulation range: DC 12V: 13-17V DC 24V: 26-34V DC 36V: 39-51V DC 48V: 52-68V Undervoltage adjustment range: DC 12V: 10-14V DC 24V: 20-28V DC 36V: 30-42V DC 48V: 40-56V Action delay range: 0.1-15s Display mode: normal, action 2 LED lights indicate the working status form: 2 set of normally open and normally closed contacts capacity: 6A 250VAC (resistivity) Installation: 35mm rail Overall dimension: Approx. 79 * 23 * 79mm / 3.1 * 0.9 * 3.1in Weight: 200 g / 7.1 oz(approx.) Package list: 1 x Overvoltage Undervoltage Protector Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
- Dual Voltage Protection: This voltage monitoring relay safeguards connected equipment by tripping on both over voltage and under voltage conditions.
- Easy Rail Mounting: Our over voltage protector is designed for simple installation on standard 35mm DIN rails commonly found in electrical panels.
- Adjustable Settings: The under voltage protector allows you to set custom trip points and delay times to match your specific DC system requirements.
- Real Time Monitoring: This din rail relay continuously monitors DC voltage providing immediate protection against faults that could damage motors or batteries.
- Wide Application: The dc voltage protector is suitable for use with UPS systems battery banks industrial controls and DC switchgear.
| Size | DC 12V |
|---|---|
| Finish | Finish |
| Material | plastic |
| Item Weight | 0.317 ounces |
| Part Number | LiebeWHcv1gyfbz862565-01 |
| Manufacturer | LiebeWH |
| Power Source | PowerSource |
| Spout Height | 1 Centimeters |
| Handle Material | default |
| Batteries Required | No |
| Measurement System | Metric |
| Product Dimensions | 3.54 x 3.54 x 1.18 inches |
| Included Components | inc |
| Installation Method | InstallationMethod |
| Item Package Quantity | 1 |
| Accessory Connection Type | default |
